De-energising the HV system — VW Golf GTE
1 / 1
Final Assessment
Answer the 10 questions. Minimum passing score: 70%
Question 1/10
Welcome
How to use this module?
🖱️
360° navigation
Click and drag in the image to look around. Use the scroll wheel to zoom.
🔵
Points of interest (Hotspots)
Click the coloured circles to discover information, photos and videos.
📋
Instructions panel
The "Instructions" button on the left displays the instructions and exercises for each phase.
🧭
Navigating between phases
Use the "Phases" button at the top to see your progress and navigate between the steps.
Glossary
Glossary of technical terms
Type to filter the glossary terms
Select a term in the list to see its definition.
Report
My progress report
Overview
📈
0%
Overall progress
⏱️
0 min
Session time
📋
0/7
Phases completed
🎯
0
Points visited
Detail by phase
Interactive exercises
0/6 completed
|
0 passed
|
0 on the first try
Per-scene micro-quiz
0/10 answered
|
0 correct
|
Success rate: 0%
Final assessment
📝
The final quiz has not been started yet.
Training status
⏳
In progress
Quick question
Exercise: sort the HV equipment
Sort each item into the correct zone for work on the high-voltage system:
- Mandatory — required by the HV procedure
- Optional — useful but not required
- Forbidden — must not be used in the HV area
Items to sort
✅ Mandatory
➕ Optional
⛔ Forbidden
Spotting: the high-voltage components

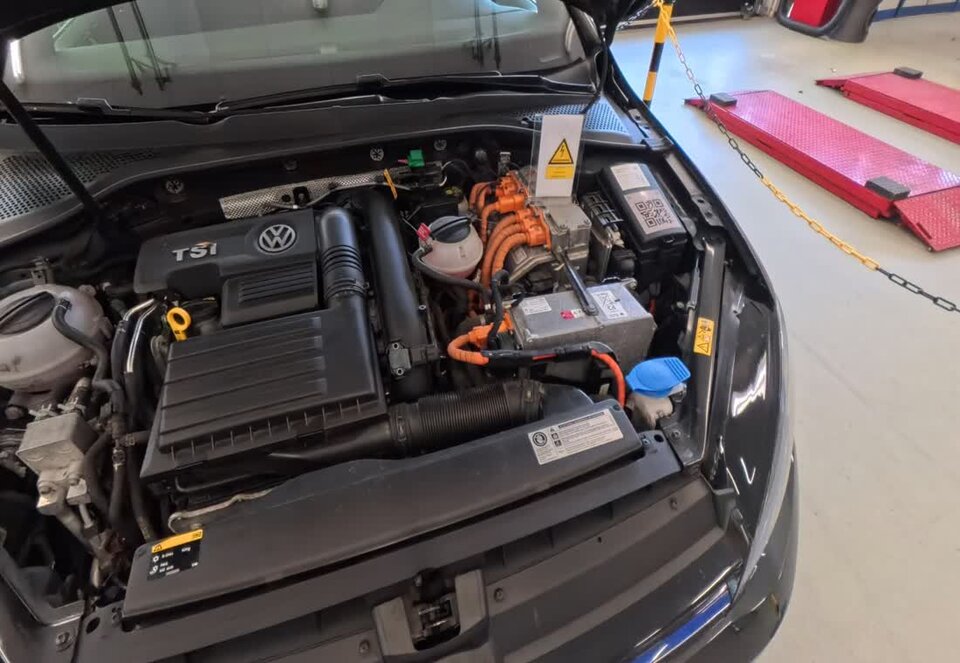

Click the 3 high-voltage components in the engine compartment. The TSI combustion engine, on the left, is NOT high-voltage.
0 / 3 found
Anticipate the 4 steps of HV de-energising
Before you start, guess the logical order of the 4 main steps for de-energising the Golf GTE. No stress, it is just to get you thinking!
Available steps
Procedure order
Step 1
Step 2
Step 3
Step 4
⚡ Case study
Re-activate the high-voltage system
Step 1 / 4
Exercise — Spot the key elements in the 360° scene
Click directly in the 360° scene to find the three essential elements: the VIN, a High-Voltage Danger label and a cordoning element.
0/3 elements found
○
The VIN number
○
High-Voltage Danger label
○
Cordoning element
👆 Close this window and click the elements directly in the 360° view
Ready to start!
Exercise — Spot the high-voltage risk area
You will now spot, directly in the 360° image, the high-voltage risk area of the engine compartment.
Click the area of the engine where you think the orange cables and the high-voltage unit are located.
⚡
High-Voltage Area
Ready to start!
High-voltage de-energising sequence
Click the actions in the logical order to disconnect and lock out the high-voltage connector of the Golf GTE.
This exercise is here to help you memorise the procedure; you can make as many mistakes as you need.
Step
1
/
6
🎉
Well done! You have reconstructed the complete de-energising sequence of the high-voltage system.
Official procedure order:
Exercise: recognise a high-voltage vehicle
Click a clue on the left, then its meaning on the right to match them. You can correct your answers as many times as you need.
Clues observed on the vehicle
What it means
Exercise: spot the de-energising mistakes
A colleague describes how they de-energise the HV system of the Golf GTE. Click on each action that is a mistake.
